Engine

Type: 4 Stroke, Single Cylinder Spark ignition engine

Maximum Power: 9.52 Hp @ 4500  rpm

Maximum Torque: 17.65 Nm @ 3100 rpm

Displacement: 230cc

Cooling: Forced air cooled

Consumption: 28(+/-4) km

Fuel Tank: 10.5 Ltrs

Transmission

Gear Box: 4 Forward, 1 Reverse speed constant mesh

Clutch: Multi Plate Wet Type

Front Suspension: Trailing arm type, Coil spring with coaxial hydraulic damper

Rear Suspension: Semi trailingt arm type, Rubber spring with shoack absober

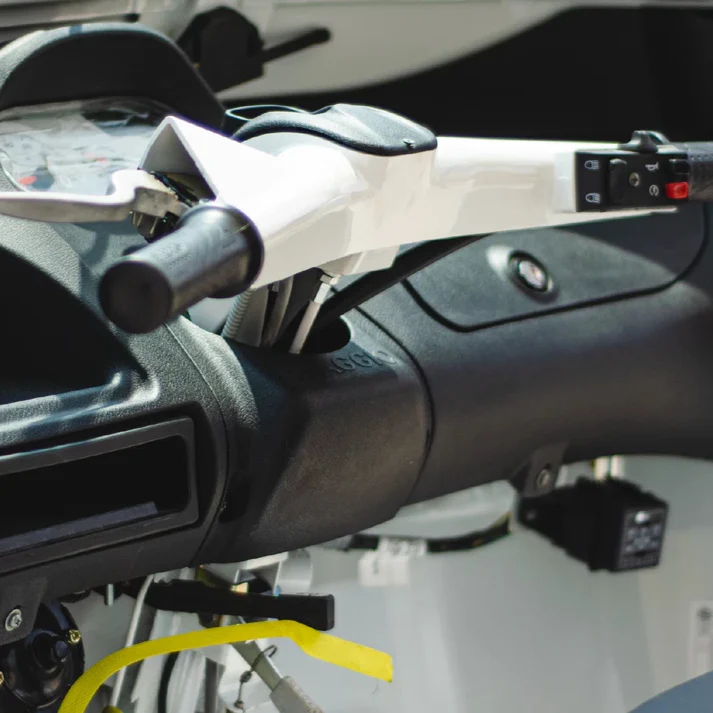

Steering: Handle Bar Type

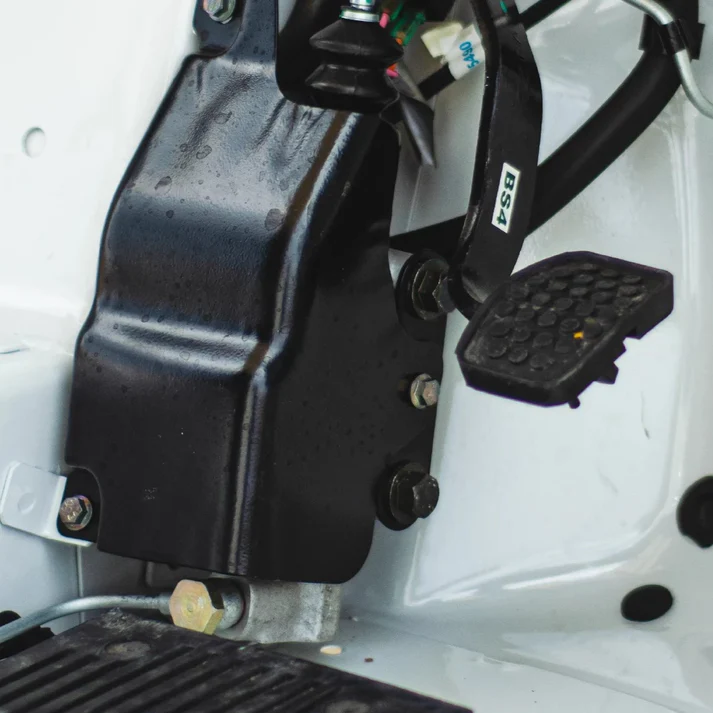

Brakes: Drum Brake Hydraulicaly Actuated Internal Expanding Shoe Type

Tyres: 4.0 – 8, 4 PR, 70E

Weight & Dimensions

GVW: 691 Kg

Kerb Weight: 391 Kg

Wheel Base: 1920 mm

Overall Width: 1370 mm

Overall Length: 2700 mm

Overall Height: 1725 mm

Ground Clearance: 160 mm

      Seating Capacity:              Driver + 3

Electricals

System Volatage: 12 DC

Battery Rating: 35 Ah
