FEATURES

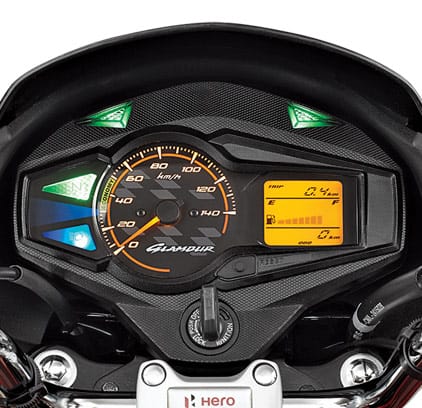

Digital Analog combo meter console- More reliable
Experience precision and durability with our Digital-Analog combo meter console—where reliability meets advanced technology on every ride.
ASFS- Better fuel mixing, hence better economy
ASFS: Experience superior fuel mixing for unmatched fuel efficiency on every ride.

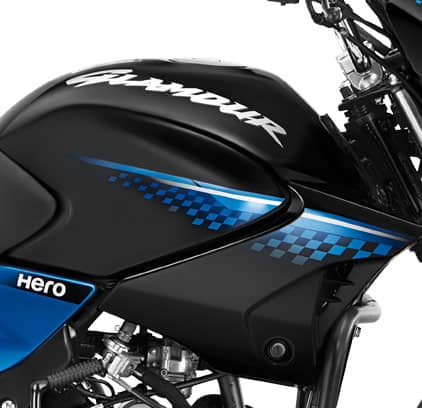

Scintillating Graphics & Aerodynamic Scoops- For a differentiated look
Unleash the thrill with scintillating graphics and aerodynamic scoops, designed for a ride that stands out from the rest.
SPECIFICATIONS

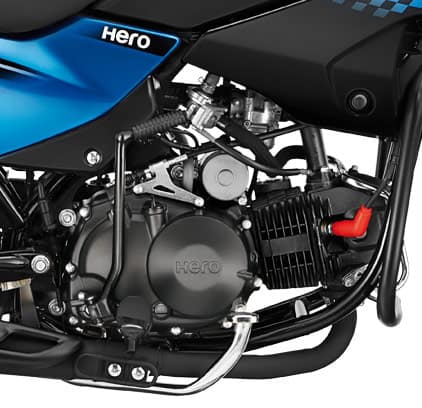

Type: | Air cooled, 4 – stroke single cylinder OHC |
Displacement: | 124.7 cc |
Max. Power: | 6.72 KW (9.1 Ps) @ 7000 RPM |
Max. Torque: | 10.35 N-m @ 4000 RPM |
Max. Speed: | 90 Kmph |
Bore x Stroke: | 52.4 x 57.8 mm |
Carburettor | Side Draft Variable Venturi ( Piston) |
Compression Ratio | 9.1:1 |
Starting | Kick / Self Start |
Ignition | AMI – Advanced Microprocessor Ignition System |
Oil Grade | SAE 10W30 SJ, JASO MA Grade |
Air Filtration | Paper Pleated Type |
Fuel System | Carburetor |
Fuel Metering | Carburetion |
Clutch: | Multiplate wet |
Gear box | 4 speed constant mesh |
Frame | Tubular double cradle type |
Front: | Tubular double cradle type |
Rear | Swing Arm with Hydraulic Shock Absorbers |
Front Brake Disc: | 240 mm Dia; Pad – Non Asbestos type |
Front Brake Drum: | Internal expanding shoe type – 130 mm Liners – Non Asbestos type |
Rear Brake Drum: | Internal expanding shoe type – 130 mm Liners – Non Asbestos type |
Tyre Size Front: | 2.75 x 18 – 42 P/ 4 PR |
Tyre Size Rear: | 3.00 x 18 – 52 P/ 6 PR |
Battery: | 12V-3 Ah, MF battery |
Head Lamp: | 12V-35W/35W – Halogen bulb (Multi Reflector Type) |
Tail/Stop Lamp: | 12V-5 / 21 W (Multi Reflector) |
Turn Signal Lamp: | 12V-10W (Amber bulb) x 4 nos (MFR – Clear lens) |
Pilot Lamp: | 12V – 3W |
Length: | 2005 mm |
Width: | 735 mm |
Height: | 1070 mm |
Saddle Height: | 790 mm |
Wheelbase: | 1265 mm |
Ground Clearance: | 150 mm |
Fuel Tank Capacity: | 13.6 Ltrs (Min) |
Reserve: | 1 Litre (Usable reserve) |
Kerb Weight: | 125 Kg (Kick) / 129 Kg (Self) |
Max Payload: | 130 Kg |
