FEATURES

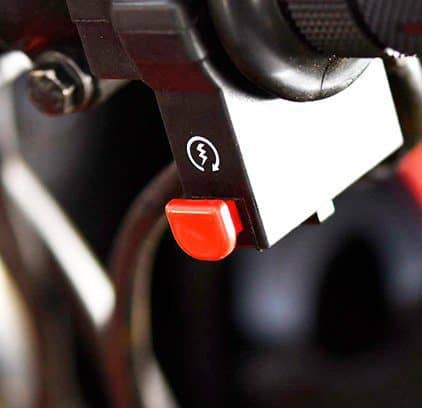

Power Start

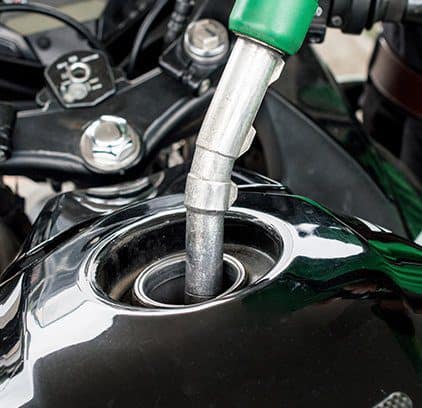

Excellent Mileage

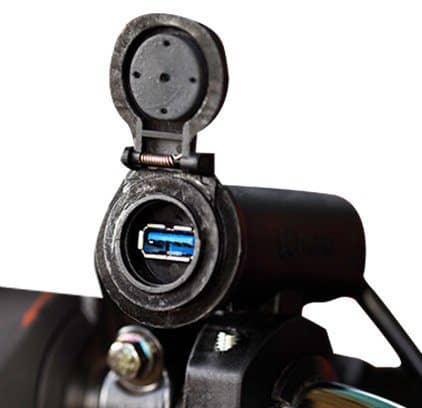

Charging Port

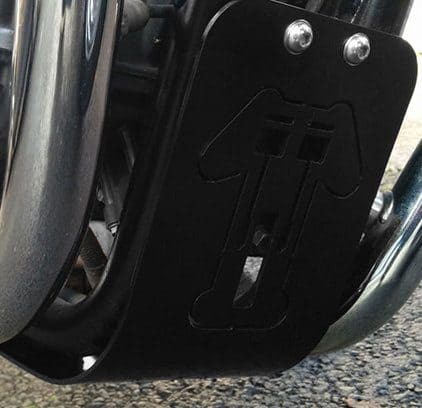

Bash Plate (Metallic)
Power Start
Excellent Mileage
Charging Port
Bash Plate (Metallic)
SPECIFICATIONS
ENGINE
| Type | Air cooled, 4-stroke, Single cylinder OHC |
| Displacement | 97.2cc |
| Max. Power | 5.74 kw (7.7 bhp @ 7500 rpm) |
| Max. Torque | 8.04 Nm @ 4500 rpm |
| Bore x Stroke | 50.0 x 49.5 mm |
| Compression Ratio | 9.0:1 |
| Starting | Self-Start |
TRANSMISSION & CHASSIS
| Clutch | Multiplate wet |
| Gear box | 4 speed constant mesh |
| Frame | Tubular double cradle |
SUSPENSION
| Front | Telescopic Hydraulic Shock Absorbers |
| Rear | Swing Arm with 2 step adjustable hydraulic shock absorber |
BRAKES
| Front Brake Disc | Internal expanding shoe type (130 mm) |
| Rear Brake Disc | Internal expanding shoe type (130 mm) |
WHEELS & TYRES
| Rim Size Front | 18 x 1.6 Cast Wheel |
| Rim Size Rear | 18 x 1.6 Cast Wheel |
| Tyre Size Front | 2.75 x 18 – 4PR / 42P |
| Tyre Size Rear | 3.0 x 18 – 6PR / 48P |
ELECTRICALS
| Battery | 12 V – 3 Ah MF Battery |
| Head Lamp | 12 V – 35 / 35 W (Halogen Bulb), Round MFR |
| Tail/Stop Lamp | 12V – 5 / 21W – MFR |
| Turn Signal Lamp | 12V – 10W x 4nos – MFR |
DIMENSIONS
| Length | 1965 mm |
| Width | 720 mm |
| Height | 1045 mm |
| Wheelbase | 1235 mm |
| Ground Clearance | 165 mm |
| Fuel Tank Capacity | 10.5 Ltrs |
| Reserve | 1.8 Ltrs |
| Kerb Weight | 113 kg |
