FEATURES

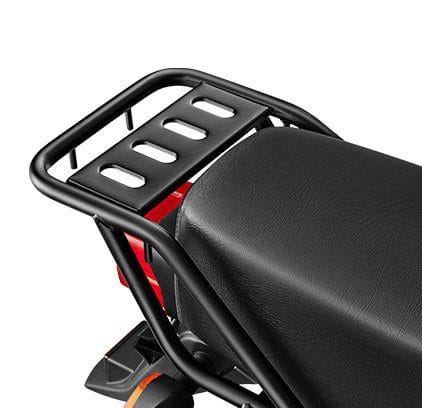

Flat and Wide Carrier

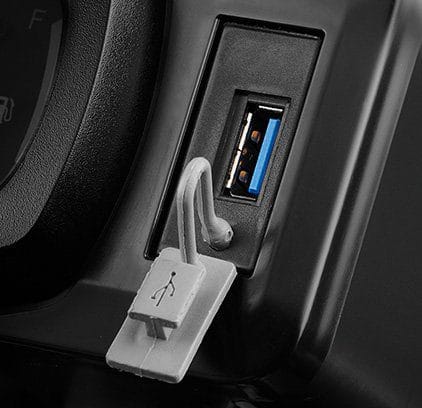

Charging Port
Alloy Wheel
Flat Boxy Seat

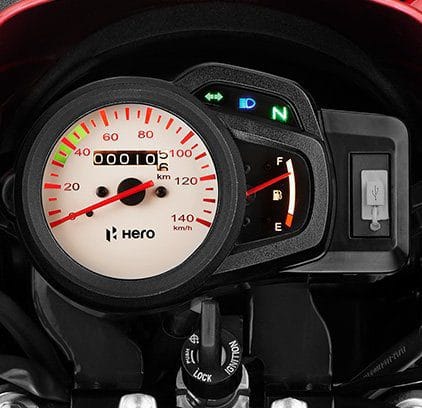

Instrument Console

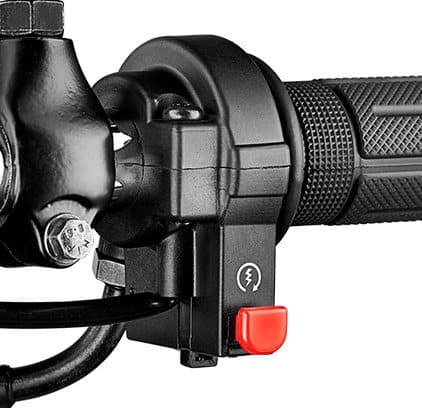

Self Start
Flat and Wide Carrier
Charging Port
Alloy Wheel
Flat Boxy Seat
Instrument Console
Self Start
SPECIFICATIONS
ENGINE
| Type | Petrol, 4-stroke air cooled, OHC |
| Displacement | 124.7 cc |
| Max. Power | 6.72 KW (9BHP) @ 7000 rpm |
| Max. Torque | 10.35 N-m @ 4000 rpm |
| Bore x Stroke | 52.4 x 57.8 mm |
| Compression Ratio | 9.1:1 |
| Starting | Self Start / Kick Start |
| Ignition | AMI – Advanced Microprocessor Ignition System |
TRANSMISSION & CHASSIS
| Clutch | Multi-plate wet type |
| Gear box | 4-speed constant mesh |
| Frame | Double Cradle- Tubular |
SUSPENSION
| Front | Telescopic hydraulic shock absorbers |
| Rear | Rectangular swing arm with 5 step adjustable hydraulic shock absorbers |
BRAKES
| Front Brake Drum | Drum type (130 mm) |
| Rear Brake Drum | Drum type (130 mm) |
WHEELS & TYRES
| Rim Size Front | 17 |
| Rim Size Rear | 17 |
| Tyre Size Front | 2.75-17 41 P |
| Tyre Size Rear | 3.0-17 50 P |
ELECTRICALS
| Battery | 12V-3Ah (MF Battery) |
| Head Lamp | 12V-35W/35W MFR (Halogen Bulb) |
| Tail/Stop Lamp | 12V-5/21W-Multi Reflector |
| Turn Signal Lamp | 12V-10Wx4 (Clear Bulb) with Amber lens -Multi Reflector |
DIMENSIONS
| Length | 2043 mm |
| Width | 740 mm |
| Height | 1037 mm |
| Wheelbase | 1267 mm |
| Ground Clearance | 160 mm |
| Fuel Tank Capacity | 12.5 litres (minimum) |
| Reserve | 1.2 litre ( usable) |
| Kerb Weight | 119 Kg |
