FEATURES

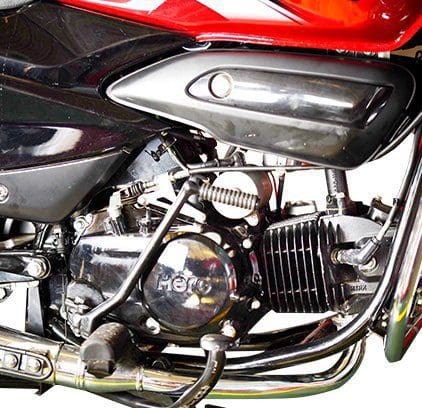

Powerful Engine
Charging Port

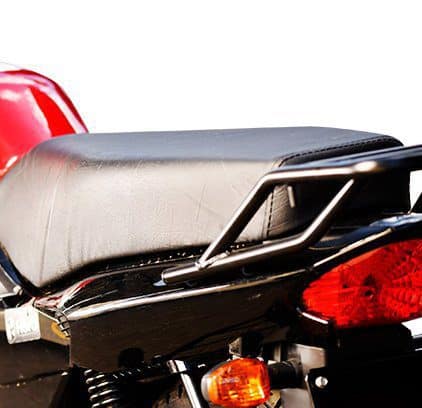

Long Wide Seat

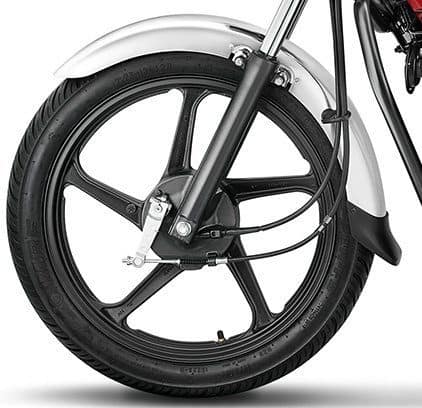

Chrome Fender
Powerful Engine
Charging Port
Long Wide Seat
Chrome Fender
SPECIFICATIONS
ENGINE
| Type | Air cooled, 4-stroke, Single cylinder OHC |
| Displacement | 149.1 cc |
| Max. Power | 10 kW (13BHP) @ 8000 rpm |
| Max. Torque | 12.80 N-m @ 5000 rpm |
| Bore x Stroke | 57.3 x 57.8 mm |
| Compression Ratio | 9.1:1 |
| Starting | Self Start / Kick Start |
| Ignition | AMI – Advanced Microprocessor Ignition System |
| Cylinder Arrangement | One cylinder, Vertical Engine |
TRANSMISSION & CHASSIS
| Clutch | Multiplate wet |
| Gear box | 5 speed Constant Mesh |
| Frame | Tubular, Diamond Type |
SUSPENSION
| Front | Telescopic Hydraulic Shock Absorbers |
| Rear | Swing Arm with adjustable hydraulic shock absorber |
BRAKES
| Front Brake Disc | Internal Expanding Shoe Type (130 mm) non asbestoes type |
| Rear Brake Disc | Internal Expanding Shoe Type (130 mm) non asbestoes type |
WHEELS & TYRES
| Rim Size Front | 18 x 1.6 Cast Wheel |
| Rim Size Rear | 18 x 1.6 Cast Wheel |
| Tyre Size Front | 2.75 x 18 – 4 PR / 42 P |
| Tyre Size Rear | 3.0 x 18 – 6 PR / 52 P |
ELECTRICALS
| Battery | 12V – 7ah, (Non MF Type) |
| Head Lamp | 35/35 W, Halogen Bulb (Round Shape) |
| Tail/Stop Lamp | 5 / 21W (Multi Reflector) |
| Turn Signal Lamp | 10W x 4 Nos (Multi Reflector) |
DIMENSIONS
| Length | 2061 mm |
| Width | 763 mm |
| Height | 1115 mm |
| Wheelbase | 1287 mm |
| Ground Clearance | 160 mm |
| Fuel Tank Capacity | 13 Ltrs |
| Reserve | 1 Ltrs |
| Kerb Weight | 140 Kg (Self) |
